Compatible TR-QQ13T-N00 QSFP+ 40G IR4 GR4 CWDM Multiplex 2KM Module Transceiver 1310NM

Name: Compatible TRQQ13TN00 QSFP 40G IR4 GR4 CWDM Multiplex 2KM Module Transceiver 1310NM
Brand: Compatible module
Price: 1 USD

Buy cheap Compatible TR-QQ13T-N00 QSFP+ 40G IR4 GR4 CWDM Multiplex 2KM Module Transceiver 1310NM product

Brand Name : Compatible module

Model Number : QSFP+ 40G-GR4

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000 PCS/MONTH

Delivery Time : 1-2 days

Packaging Details : SEALED IN BAG

Product model : QSFP+ 40G-GR4

Data rate : 40Gb

Wavelength : 1310nm

Fiber Type : Single mode

Transimitter Type : DFB CWDM

Distance : 2KM

Warranty : 1 year warranty

L/R PIN : HXQ40CG

Contact Now

Overview

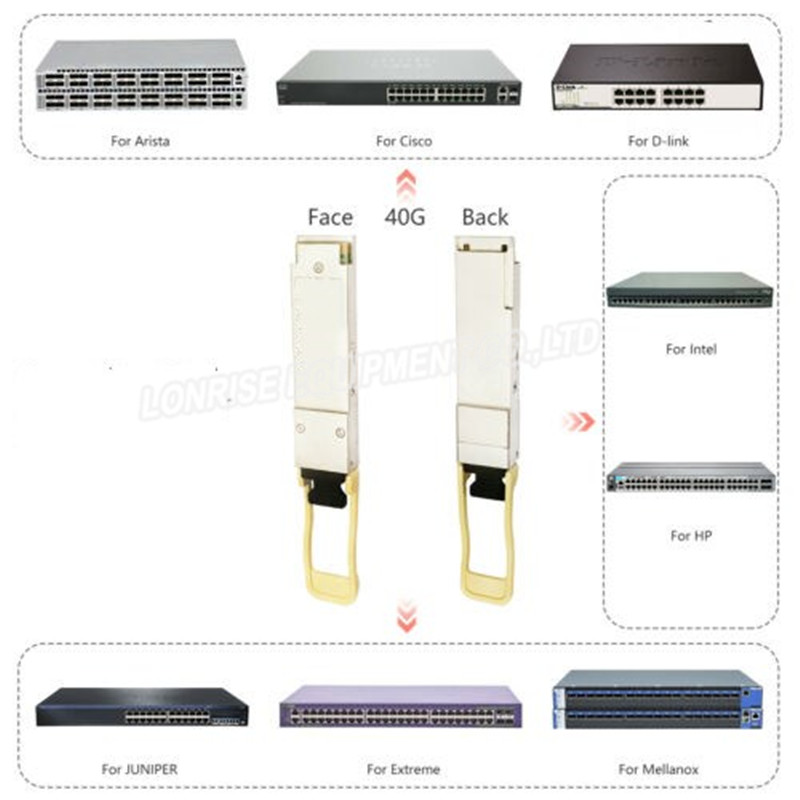

Compatible TR-QQ13T-N00 QSFP+ 40G IR4 GR4 CWDM Multiplex 2KM Transceiver

Specification

Brand	LONRISE
Place of origin	China
Form Factor	QSFP+
Wavelength	1310nm
Distance	2KM
Data Rate (max)	40Gb
Low End Case Temperature (°C)	0℃
High End Case Temperature (°C)	70℃
Power Supply	3.3v
Connector	LC connector
Warranty	1-year
Fiber Type	Single mode
TX	DFB CWDM
DDMI	Yes
Time of delivery	within 24hours
Package	10pcs/anti-static box

NO	Module	Model	Specification
1	10G	HXS10E	SFP+10G-ER4 40KM 1550NM
2	10G	HXS10ZT	SFP+10G-80KM-DWDM-TUNABLE
3	25G	HXS25S	SFP28-25G-SR 0.1KM 850NM
4	25G	HXS25L	SFP28-25G-LR 10KM 1310NM
5	40G	HXQ40S	QSFP+ 40G-SR4 0.3KM 850NM
6		HXQ40CG	QSFP+ 40G-GR4 2KM 1310NM
7		HXQ40PI	QSFP+ 40G-IR4-PSM 2KM 1310NM
8		HXQ40L	QSFP+ 40G-LR4 10KM 1310NM
9		HXQ40Le	QSFP+ 40G-eSM4 10KM 1310NM
10		HXQ40SRBD	QSFP+ 40G-SRBD 0.1KM 850NM
11	50G	HXQ50LRBD	QSFP28-50G-LR-BiDi 1311NM 10KM
12		HXQ50ERBD	QSFP28-50G-ER-BIDI 1311NM 40km
13		HXQ50L	QSFP28-50G-LR-10KM
14		HXQ50E	QSFP28-50G-ER-40KM
15	100G	HXQ100S	QSFP28-100G-SR4-100M-850NM
16		HXQ100SRBD	QSFP28-100G-SRBD-100M-850NM
17		HXQ100P	QSFP28-100G-PSM4-2KM-1310NM
18		HXQ100C	QSFP28-100G-CWDM4-2KM-1310NM
19		HXQ100L	QSFP28-100G-LR4-10KM-1310NM
20		HXQ100E(DML)	QSFP28-112G-ER4-40KM-1310NM
		HXQ100EL(DML)	QSFP28-100G-ER4-30KM-1310NM
		HXQ100Es(EML)	QSFP28-112G-40KM-EML-1310NM
		HXQ100E(EML)	QSFP28-100G-40KM-EML-1310NM
21		HXQ100Z	QSFP28-100G-ZR4-80KM-1310NM
22		HXC11L	CFP-100G-LR4-10KM-1310NM
23		HXC11Ls	CFP-100G-LR4-10KM-1310NM-OTU4
24		HXC11E	CFP-100G-ER4-40KM-1310NM
25		HXC11Z	CFP-100G-ZR4-80KM-1310NM
26		HXC21L	CFP2-100G-LR4-10KM-1310NM
27		HXC21Ls	CFP2-100G-LR4-10KM-1310NM-OTU4
28		HXC21E	CFP2-100G-ER4-40KM-1310NM
29		HXC21Z	CFP2-100G-ZR4-80KM-1310NM
30	200G	HXQDD200L	QSFP-DD-200G-LR4-10KM
31		HXQDD200E	QSFP-DD-200G-ER4-40KM
32		HXC22E	CFP2-200G-ER4-40KM
33	400G	HXQDD400SR8	QSFP-DD-400G-SR8-100M
34		HXQD400DR4	QSFP-DD-400G-DR4-500M
35		HXQD400FR4	QSFP-DD-400G-FR4-2KM

Compatible TR-QQ13T-N00 QSFP+ 40G IR4 GR4 CWDM Multiplex 2KM Module Transceiver 1310NM

FAQ

1. How to ship the goods?

Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.

2. What’s your payment term?

We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.

Related products

PN	DESCRIPTION	DATA RATE	REACH	TX	RX	OUTPUT POWER	SENSITIVITY
HXQ40S	QSFP+ SR4	40Gbps	100M	850nm VCSEL	PIN	-7.6～+2.4dBm	≦-11.1dBm
HXQ40S3	QSFP+ eSR4	40Gbps	300M	850nm VCSEL	PIN	-7.6～+2.4dBm	≦-11.1dBm
HXQ40CG	QSFP+ CWDM GR4	40Gbps	2KM	CWDM DFB	PIN	-7.5～+2.5dBm	≦-10dBm
HXQ40PI	QSFP+ PSM IR4	40Gbps	2KM	1310nm DFB	PIN	-5.5～+1.5dBm	≦-12.5dBm
HXQ40L	QSFP+ LR4	40Gbps	10KM	CWDM DFB	PIN	-7.5～+2.5dBm	≦-10dBm
HXQ40Le	QSFP+ eSM4	40Gbps	10KM	1310nm DFB	PIN	-5.5～+1.5dBm	≦-12.6dBm
HXQ40E	QSFP+ ER4	40Gbps	40KM	CWDM DFB	PIN	-2.7～+4.5dBm	≦-19dBm
