Compatible QSFP-DD-400G-DR4 400Gb/S QSFP-DD DR4 500m SMF Optical Transceiver

LonRise Equipment Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

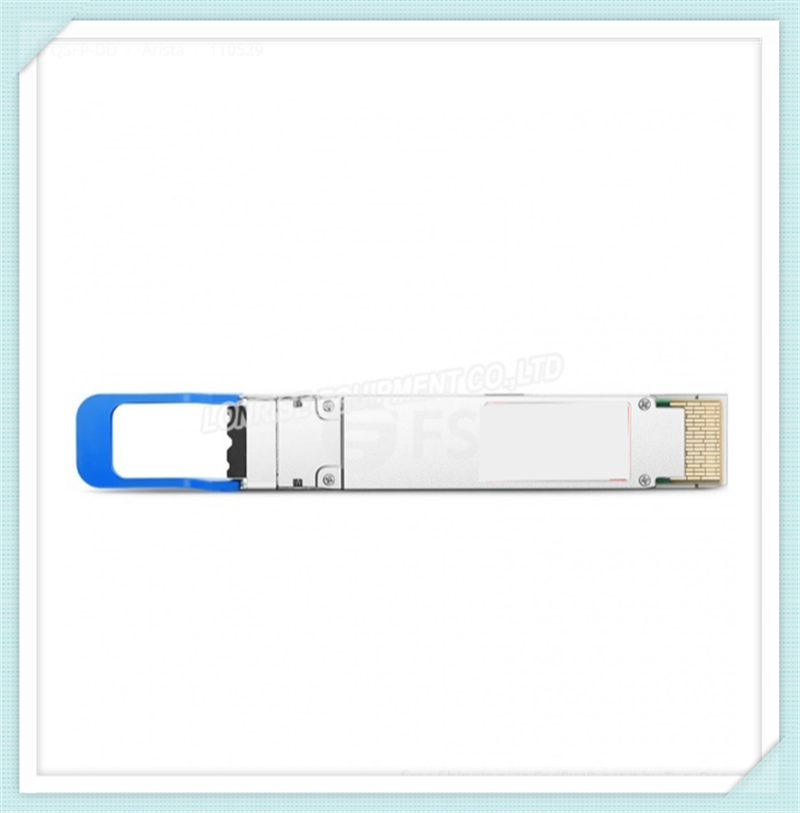

Compatible QSFP-DD-400G-DR4 400Gb/S QSFP-DD DR4 500m SMF Optical Transceiver

  • 1
  • 2

Brand Name : LR

Model Number : QSFP-DD-400G-DR4

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000 PCS/MONTH

Delivery Time : 1-2 days

Packaging Details : SEALED IN BAG

Product model : QSFP-DD-400G-DR4

Vendor Name : LR

Form Factor : QSFP-DD

Max Data Rate : 400Gbps

Wavelength : 1310nm

Warranty : 1 year warranty

Max Cable Distance : 500m

Connector : MTP/MPO-12

Media : SMF

Electric Signal : 8x50G

Application : 400GBASE Data Center

Contact Now



















Overview



The 400GBASE-DR4 module supports link lengths of up to 500m parallel SMF with MTP/MPO-12 connector. It is compliant to QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.



Specification



Part Number QSFP-DD-400G-DR4 Vendor Name LR
Form Factor QSFP-DD Max Data Rate 400Gbps
Wavelength 1310nm


Max Cable Distance 500m
Connector MTP/MPO-12 Media SMF
Transmitter Type 1310nm EML Receiver Type PIN
Electric Signal 8x50G Optical Signal 4x100G
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2.9~4.0dBm Receiver Sensitivity <-5.9dBm
Power Consumption <12W Extinction Ratio 3.5dB
Modulation Format PAM4 DSP TX and RX
Transmitter and Dispersion Eye Closure Quaternary 3.4dB Powerbudget 3dB
Packaging Technology COB (chip on board) Packaging FEC Function


Not Supported
Protocols QSFP-DD MSA Compliant Application 400GBASE Data Center


Compatible QSFP-DD-400G-DR4 400Gb/S QSFP-DD DR4 500m SMF Optical Transceiver

FAQ



1. How to ship the goods?

Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.



2. What’s your payment term?

We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
