Cisco N9K-C9396TX Is An Extension Switches With Higher Bandwidth Capacity

Brand Name : CISCO

Model Number : N9K-C9396TX

Certification : CE

Place of Origin : China

MOQ : 1UNIT

Price : negotiation

Payment Terms : Western Union, L/C, T/T, Paypal

Supply Ability : 100

Delivery Time : 2-3days

Packaging Details : plastic package for anti-static

Brand : CISCO

Product Code : N9K-C9396TX

Ports : 48 fixed 1/10GBASE-T ports

Maximum power : 712W

Physical (H x W x D) : 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)

Weight : 22.45 lb (10.2 kg)

Warranty : 1 Year

MOQ : 1PC

Contact Now

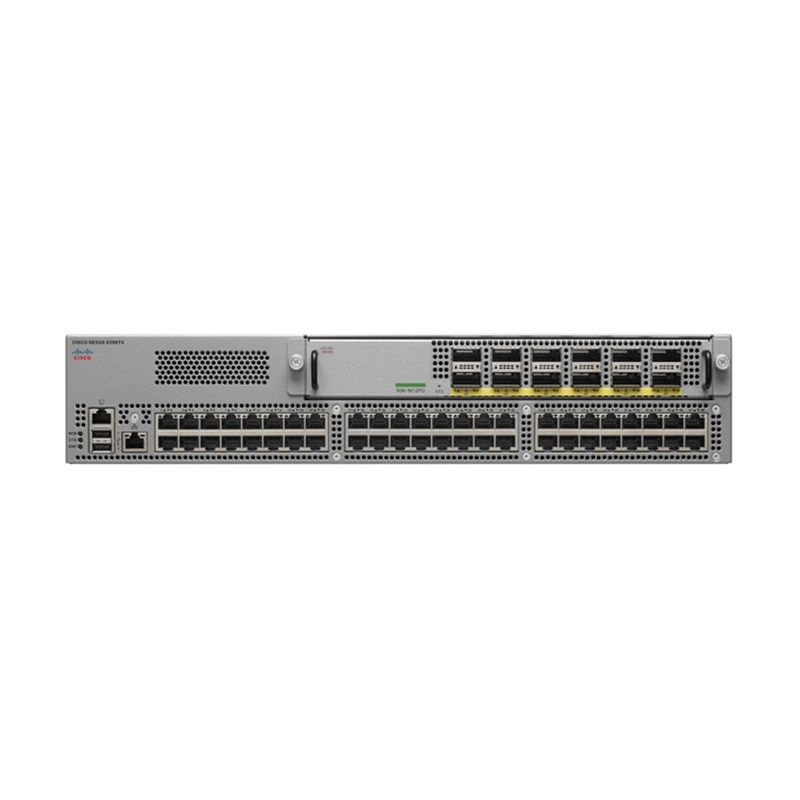

N9K-C9396TX

N9K-C9396TX is the Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.





N9K-C9396TX Specification
Ports 48 fixed 1/10GBASE-T ports
Supported speeds 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink ports 6 or 12 QFSP+ ports active through the uplink module
Customers have the choice of either N9K-M6PQ or N9K-M12PQ for 40 Gigabit Ethernet uplink connectivity to aggregation or spine switches.
100 Gigabit Ethernet uplink ports Customer can have 100 Gigabit Ethernet uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as well as the Cisco CPAK®100-Gbps module through converters.
The N9K-M4PC-CFP2 offers 5 MB of additional buffer space for each port.
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC) 427W
Maximum power (AC) 712W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –48 to –60V
Input voltage (HVDC) –240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 3
Physical (H x W x D) 3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)
Acoustics 68.3 dBA at 40% fan speed, 78.8 dBA at 70% fan speed, and 84.5 dB at 100% fan speed
RoHS compliance Yes
Weight 22.45 lb (10.2 kg) (without power supplies, fans, or uplink module)
