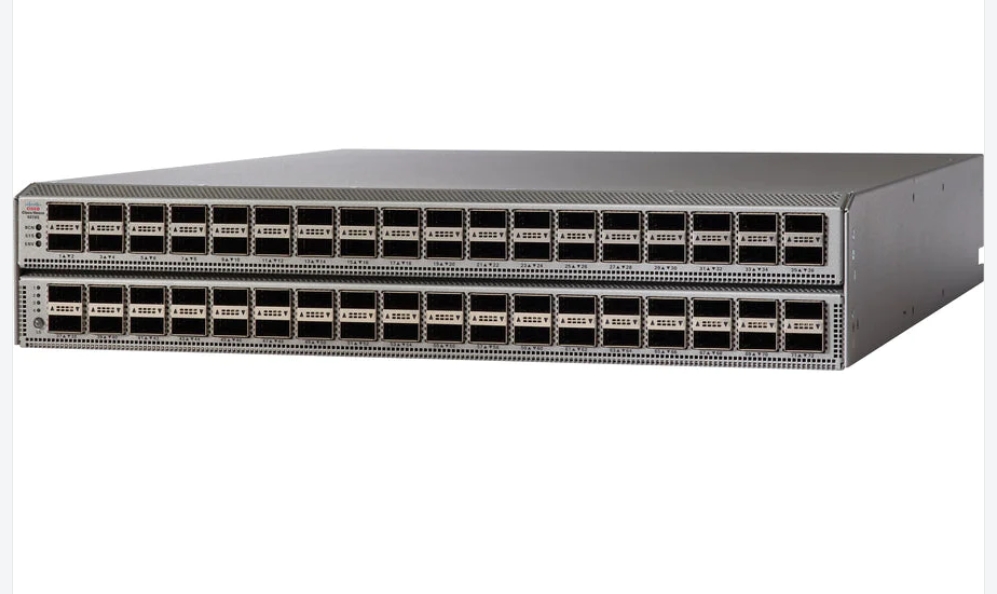

N9K-C9272Q 72-Ports 40GBase-X QSFP+ Layer-3 Managed 2U Rack-Mountable Gigabit Ethernet Network Switch

Brand Name : Cisco

Model Number : N9K-C9272Q

Certification : CE

Place of Origin : USA

Model : N9K-C9272Q

Ports : 72 x 40-Gbps QSFP+ ports

Supported speeds : 10, and 40 Gbps

System memory : 16 GB

Solid-State Disk (SSD) drive : 64 GB

Dimension : 3.5 x 17.4x 24.5 in.

Condition : New Factory Sealed

Warranty : 1 year

Lead time : 2-4days

Payment : T/T, Western Union, Paypal

Shipping : DHL, Fedex, UPS

Contact Now

N9K-C9272Q Overview

N9K-C9272Q is the Nexus 9200 with 72p 40G QSFP+. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.


N9K-C9272Q 72-Ports 40GBase-X QSFP+ Layer-3 Managed 2U Rack-Mountable Gigabit Ethernet Network Switch


Compare to Similar Items

Product Code N9K-C9272Q N9K-C92160YC-X
Ports 72 x 40-Gbps QSFP+ ports 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable)
Supported speeds 10, and 40 Gbps

· 1, 10, and 25 Gbps on SFP+ ports

· 10, 25, 40, and 100 Gbps on QSFP ports
Port configuration 72 fixed QSFP+ ports, with breakout of up to 140 x 10-Gbps ports 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps



N9K-C9272Q Specification

N9K-C9272Q Specification
Ports 72 x 40-Gbps QSFP+ ports
Supported speeds 10, and 40 Gbps
Port configuration 72 fixed QSFP+ ports, with breakout of up to 140 x 10-Gbps ports
Telemetry support –
CPU 4 cores
System memory 16 GB
Solid-State Disk (SSD) drive 64 GB
Shared system buffer 30 MB
Management ports 2 ports: 1 RJ-45 and 1SFP
USB ports 1
RS-232 serial ports 1
Power supplies (PSU - up to 2) 930W DC, 1200W AC, or 1200W HVAC/DC
Typical power (AC) 310W
Maximum power (AC) 975W
Input voltage (AC)

100 to 240V

PSU redundancy is not supported when used in 110V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)
Input voltage (HVDC) 240 to 380V
Frequency (AC) 50 to 60 Hz
Fans 2
Airflow Port-side intake and exhaust
MTBF (hours) 397,090
Physical (H x W x D) 3.5 x 17.4x 24.5 in. (8.9 x 44.2 x 62.3 cm)
Acoustics 61.2 dBA at 50% fan speed, 69.6 dBA at 70% fan speed, and 78.2 dB at 100% fan speed
RoHS compliance Yes



N9K-C9272Q 72-Ports 40GBase-X QSFP+ Layer-3 Managed 2U Rack-Mountable Gigabit Ethernet Network Switch
