Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC

Name: Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC
Brand: Huawei
Price: 1 USD

Buy cheap Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC product

Brand Name : Huawei

Model Number : AP5030DN

Certification : CE

Place of Origin : CHINA

MOQ : 1UNIT

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100 Units/Month

Delivery Time : 2-3days

Packaging Details : NEW IN BOX

Product Type : Huawei Access Point

Model : AP5030DN

Function : LACP,POE,QoS,SNMP,Stackable,

Maximum Number of Users : ≤ 256

Maximum Power Consumption : 12.95W

Lead Time : within 2 - 3 days after received payment

Contact Now

Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC

1 . Description:

Huawei AP5030DN cost-effective Indoor Access Point delivers high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. The AP5030DN is Huawei's latest-generation 802.11ac Wave 1 access points. It also delivers Fast, reliable wireless access services 3 x 3 MIMO technology to aggregate wireless data rates up to 1.75 Gbit/s, WMM and priority mapping on the air interface and wired interface; legacy 802.11a/b/g/n client support ensures seamless user connections. Integrated antennas provide omnidirectional coverage without coverage holes and PoE power supply in compliance with IEEE 802.3af/at simplifies AP installation and supports Plug-and-Play (PnP) in Fit AP mode.

Product Details

Product Number	AP5030DN
Antenna Type/Antenna Gain	Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi
Maximum Number of Users	≤ 256
Maximum Transmit Power	25 dBm (combined power)
MIMO: Spatial Streams	3 x 3:3
Radio Protocol	802.11a/b/g/n/ac
Maximum Speed	1.75 Gbit/s
Power Input	12V DC ±10% PoE: –48V DC (in compliance with IEEE 802.3af/at)
Maximum Power Consumption	12.95W
Operating Temperature	–10℃ to 50℃
Dimensions (H x W x D)	220 mm x 220 mm x 53 mm
Net Weight	2.2 lb. (1 kg)

Note:

1	Default button: Restores factory settings if you hold down the button more than three seconds
2	Console interface
3	GE1: 10M/100M/1,000M interface, connects to the wired Ethernet
4	GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply
5	Power input interface: 12V DC
6	Security slot: Connects to a security lock and protects the AP against theft

Compare to Similar Items

It shows the comparison of AP5030DN and AP5130DN.

Model	AP5030DN	AP5130DN
Antenna Type/Antenna Gain	Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi	Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi
Maximum Number of Users	≤ 256	≤ 256
Maximum Transmit Power	25 dBm (combined power)	25 dBm (combined power)
MIMO: Spatial Streams	3 x 3:3	3 x 3:3
Radio Protocol	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Maximum Speed	1.75 Gbit/s	1.75 Gbit/s

2 . Company

Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC

3. Advantages

4 .Packaging and shiping

If you are interested in any product,Welcome to consult !!

Product Tags:

cisco poe wifi access point

cisco wifi access point

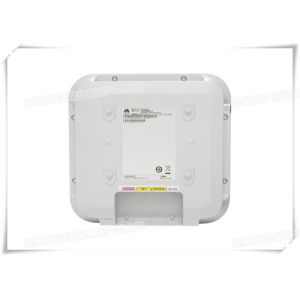

Huawei AP5030DN Wireless Access Ponit Broadband Network Terminal 11AC Images
