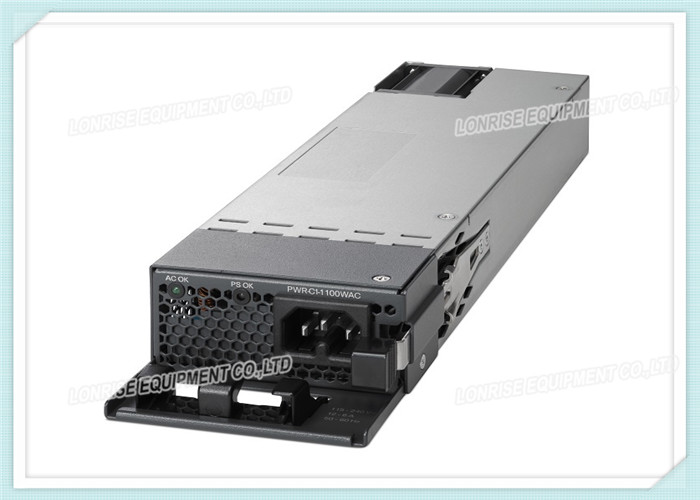

Sealed PWR-C1-1100WAC Optical Transceiver Module Power Supply For Cisco 3850 Series Switches

Brand Name : CISCO

Model Number : PWR-C1-1100WAC

Certification : CE

Place of Origin : CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100 PCS/MONTH

Delivery Time : 1-2 DAYS

Packaging Details : SEALED IN BAG

Brand : CISCO

PART NUMBER : PWR-C1-1100WAC

Power supply rated maximum : 1100W

Input current : 12-6A

Output ratings : -56V at 19.64A

Output holdup time : 10 ms minimum at 102.5VAC

Contact Now





Brand New Sealed PWR-C1-1100WAC Cisco Power Supply for Cisco 3850 Series Switches







PWR-C1-1100WAC Overview





Cisco 3850 Series Power Supply - PWR-C1-1100WAC 1100W AC Config 1 Power Supply for 3850 Series.



Get the Cisco Power Supply for Catalyst 3850-48F-E and experience uninterrupted power supply to specific Cisco switch models. The external power supply module requires 50-60 Hz frequency and AC 115-240 V input voltage for optimum performance. This 1100-watt AC power supply spare plug-in module features Power IEC 320 EN 60320 C16 connector.







Sealed PWR-C1-1100WAC Optical Transceiver Module Power Supply For Cisco 3850 Series Switches

Sealed PWR-C1-1100WAC Optical Transceiver Module Power Supply For Cisco 3850 Series Switches



Sealed PWR-C1-1100WAC Optical Transceiver Module Power Supply For Cisco 3850 Series Switches





PWR-C1-1100WAC Specification



PWR-C1-1100WAC Specification
Power supply rated maximum 1100W
Total output BTU (Note: 1000 BTU/hr = 293W) 3793 BTU/hr, 1100W
Input-voltage range and frequency

115-240VAC,

50-60 Hz
Input current 12-6A
Output ratings -56V at 19.64A
Output holdup time 10 ms minimum at 102.5VAC
Power-supply input receptacles

IEC 320-C16

(IEC60320-C16)
Power cord rating 13A
Physical specifications

(H x W x D): 1.58 X 3.25 X 13.7 in

Weight: 3 lb
(1.4 kg)
Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking

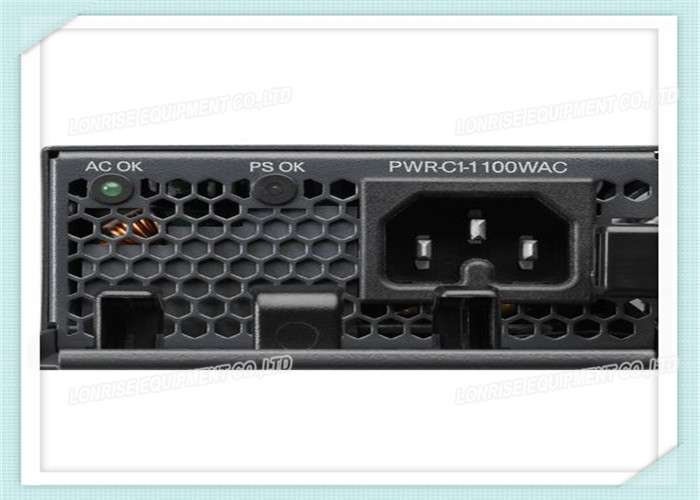

LED indicators

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK



Details

Type

Power Supply

Specifications

Output Power: 1.10 kW

Input Voltage: 110 V AC
Input Voltage: 220 V AC
Input Voltage Range: 110 V AC to 240 V AC
Output Voltage: -56 V DC
Frequency: 60 Hz
Frequency: 50 Hz
Current: 19.64 A
Current: 13 A

Compatibility: Cisco Catalyst 3850 Series Switches





Main Features
  • Power supply
  • hot-plug / redundant (plug-in module)
  • AC 115-240 V
  • 1100 Watt
  • for Catalyst 3850-48F-E
  • 3850-48F-L
  • 3850-48F-S
  • Compact form factor for easy portability
  • Power supply module for Catalyst 3850-48F-E, 3850-48F-L and 3850-48F-S
  • Redundant power supply compliant with latest industry standards
