OSX040N01 Huawei Optical Transceiver OSX040N01 02310CNF SFP+ 10G Multi-Mode Module(1550nm 40km LC LRM)

Name: OSX040N01 Huawei Optical Transceiver OSX040N01 02310CNF SFP 10G MultiMode Module1550nm 40km LC LRM
Brand: Huawei
Price: 1 USD

Buy cheap OSX040N01 Huawei Optical Transceiver OSX040N01 02310CNF SFP+ 10G Multi-Mode Module(1550nm 40km LC LRM) product

Brand Name : Huawei

Model Number : OSX040N01

Certification : CE

Place of Origin : China

Model : OSX040N01

Transceiver form factor : SFP+

Transmission speed : 10 Gbit/s

Center wavelength (nm) : 1550mm

Connector type : LC

Optical fiber type : SMF

Single-mode fiber : 40 km

Condition : New Factory Sealed

Warranty : 1 year

Shipment : DHL, Fedex, UPS

Payment : T/T, Western Union, Paypal

Contact Now

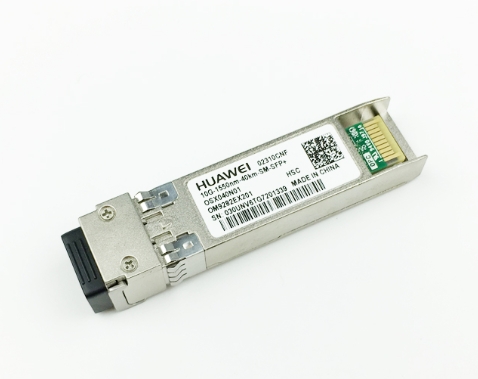

OSX040N01 Overview

Huawei's OSX040N01 is a high-performance SFP+ module designed for 10G Ethernet applications. With a single-mode, 1550nm wavelength and a transmission distance of 40km, this module provides reliable and high-speed connectivity. The LC interface ensures easy and secure plug-and-play installation.

OSX040N01 Huawei Optical Transceiver OSX040N01 02310CNF SFP+ 10G Multi-Mode Module(1550nm 40km LC LRM)

Quick Spec

Table 1: Quick Spec of OSX040N01

Module Type	SFP+
Data Rate	10G
Transmission Mode	Single-mode
Wavelength	1550nm
Connector type	LC

Product Features

High-performance SFP+ module
Supports 10G Ethernet applications
Single-mode transmission for long-distance connectivity
1550nm wavelength for optimal performance
Easy plug-and-play installation with LC interface

Product Applications

Data centers
Telecommunication networks
Large-scale enterprise networks

OSX040N01 Specification

OSX040N01 Specifications
Product Model	OSX040N01
Brand	Huawei
Form factor	SFP+
Data Rate	10G
Transmission Medium	Single-mode
Wavelength	1550nm
DDM options	Supported
Connector Type	LC
Operating Temperature	0°C to 70°C (32°F to 158°F)
Diagnostics Monitoring	Supported
Optical Interface	Duplex LC
Compatibility	Multivendor Compatible
DOM Support	Yes
Power Budget	24 dB
Target transmission distance	Single-mode fiber: 40 km
Supported Protocols	Ethernet, SONET/SDH, Fiber Channel, OTN
Transmission rate	10Gbit/s
Maximum Tx optical power	4.0 dBm
Minimum extinction ratio	3.0 dB
