SFP FE SX MM1310 Optical Transceiver SFP 100M 155M Multi mode

Name: SFP FE SX MM1310 Optical Transceiver SFP 100M 155M Multi mode
Brand: HUAWEI
Price: 1 USD

Buy cheap SFP FE SX MM1310 Optical Transceiver SFP 100M 155M Multi mode product

Brand Name : HUAWEI

Model Number : SFP FE SX MM1310

Certification : CE

Place of Origin : CHINA

Speed : 2.5G

Tested : new sealed box

Application : Ethernet, Fiber Channel, SONET/SDH, etc.

Max Data Rate : 40Gbps

Appliaction : 1000BASE COPPER TX Ethernet

Title : huawei sfp module china

Able Length : 3m(9.84ft)

Max Cable Distance : 40km (24.9 miles)

Transmitter Power : -9.5 to - 3dBm

Temperature Range : -40℃~+85℃

Surface Treatment : Zinc-coating|Powder Coating

Media : Single-Mode Fiber

Receptacle : RJ45

Model : gepon olt sfp

Wavelenth : 1550nm

payment : TT/LC

Contact Now

SFP-FE-SX-MM1310 Overview

Huawei SFP-FE-SX-MM1310 is Optical Transceiver. It’s a Multi-mode Module.
SFP FE SX MM1310 Optical Transceiver SFP 100M 155M Multi mode

Quick Specs

Table 1 shows the Quick Specs.

Product Code	SFP-FE-SX-MM1310
Transceiver form factor	SFP
Transmission speed	Fast Ethernet
Center wavelength (nm)	1310
Standard compliance	100base-FX
Connector type	LC
Applicable cable and maximum transmission distance	Multimode fiber (50 μm or 62.5 μm diameter): 2 km
Transmit power (dBm)	-19.0 to -14.0
Maximum receiver sensitivity (dBm)	-30.0
Overload power (dBm)	-14.0
Extinction ratio (dB)	10
Operating temperature	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	145 x 80 x 35

The Supported Switches

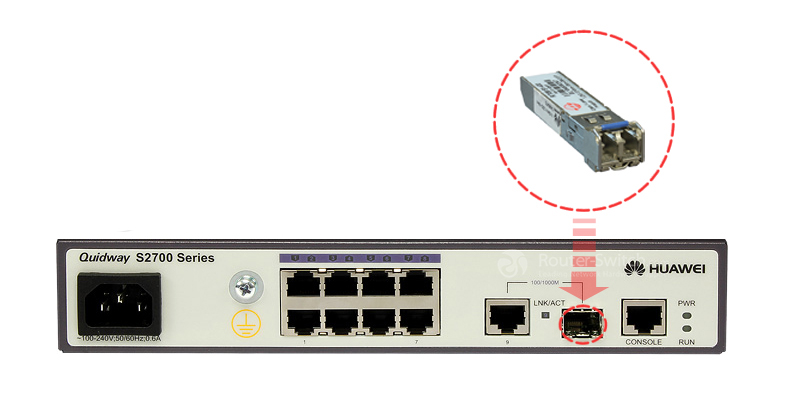

Figure 1. SFP-FE-SX-MM1310 can be installed in the switch’s SFP slot.

SFP FE SX MM1310 Optical Transceiver SFP 100M 155M Multi mode

Table 2 shows the Huawei hot switches which support SFP-FE-SX-MM1310.

Model	Description
S2700-26TP-EI-DC	24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V
S2700-52P-EI-AC	48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V
S2700-26TP-EI-AC	4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S2700-9TP-PWR-EI	8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V
S2700-26TP-PWR-EI	24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module
S2700-9TP-EI-AC	8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-EI-AC	24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-SI-AC	24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-PWR-SI	24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply

Compare to Similar Items

Table 3 shows the comparison of SFP-FE-SX-MM1310 and eSFP-FE-LX-SM1310.

Item	SFP-FE-SX-MM1310	eSFP-FE-LX-SM1310
Transceiver form factor	SFP	eSFP
Transmission speed	Fast Ethernet	100 Mbit/s
Center wavelength (nm)	1310	1310
Standard compliance	100base-FX	100base-LX
Connector type	LC	LC
Applicable cable and maximum transmission distance	Multimode fiber (50 μm or 62.5 μm diameter): 2 km	Single-mode fiber: 15 km
Transmit power (dBm)	-19.0 to -14.0	-15.0 to -8.0
Maximum receiver sensitivity (dBm)	-30.0	-31.0
Overload power (dBm)	-14.0	-8.0
Extinction ratio (dB)	10	8.2
Operating temperature	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	145 x 80 x 35	110 x 75 x 40
