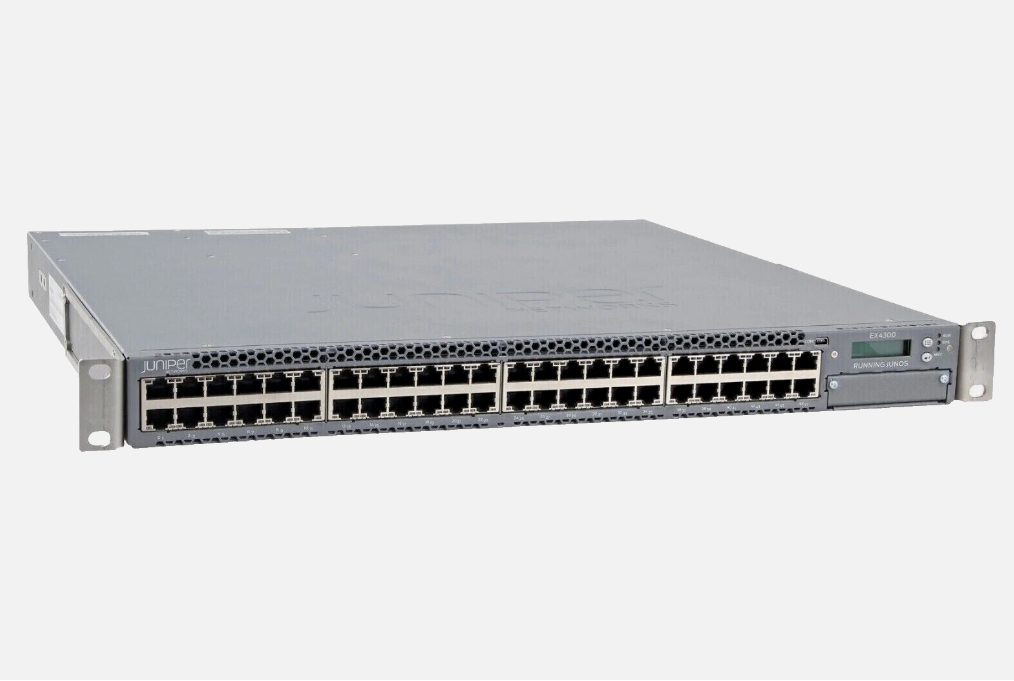

EX4300-48T Juniper EX4300 Series Ethernet Switches 48-port 10/100/1000BASE-T + 350 W AC PS

Name: EX430048T Juniper EX4300 Series Ethernet Switches 48port 101001000BASET 350 W AC PS
Brand: Juniper
Price: 1 USD

Buy cheap EX4300-48T Juniper EX4300 Series Ethernet Switches 48-port 10/100/1000BASE-T + 350 W AC PS product

Brand Name : Juniper

Model Number : EX4300-32F

Certification : CE

Place of Origin : USA

Brand : Juniper

Model : EX4300-48T

Backplane speed : 320 Gbps (Virtual Chassis)

Data rate : 496 Gbps

Throughput : 369 Mpps (wire speed)

Dimensions : 17.4 x 1.7 x 16.4 in

Condition : Brand New Sealed

Warranty : 1 year

Payment : T/T, Western Union, Paypal

Shipment : DHL, Fedex, UPS

Contact Now

EX4300-48T Overview

EX4300-48T is a Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately). EX4300 1 Gigabit Ethernet (1GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis, Virtual Chassis Fabric, or Junos Fusion switching architecture, satisfying a variety of high-performance campus and data center access needs.

EX4300-48T Juniper EX4300 Series Ethernet Switches 48-port 10/100/1000BASE-T + 350 W AC PS

Compare to Similar Items

SKU	EX4300-24T	EX4300-48T	EX4300-24P
Backplane speed	320 Gbps (Virtual Chassis)	320 Gbps (Virtual Chassis)	320 Gbps (Virtual Chassis)
Data rate	448 Gbps	496 Gbps	448 Gbps
Throughput	333 Mpps (wire speed)	369 Mpps (wire speed)	333 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit

EX4300-48T Specification

EX4300-48T Specification
Description	Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately)
Form factor	Fixed platform Virtual Chassis configuration consisting of 10 switches
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
Backplane speed	320 Gbps (Virtual Chassis)
Data rate	496 Gbps
Throughput	369 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
100GBASE C form-factor pluggable transceiver (CFP) port densities	N/A
Resiliency	Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
Operating system	Junos OS
Traffic monitoring	sFlow
Quality-of-service (QoS) queues/port	12
MAC addresses	64,000
Jumbo frames	9216 bytes
IPv4 unicast/multicast routes	32,000/8000
IPv6 unicast/multicast routes	18,000/4000
Number of VLANs	4093
ARP entries	64,000

EX4300-48T Juniper EX4300 Series Ethernet Switches 48-port 10/100/1000BASE-T + 350 W AC PS
